TMT-PH600 Infrared Preheater

1 Year Warranty - $999.00

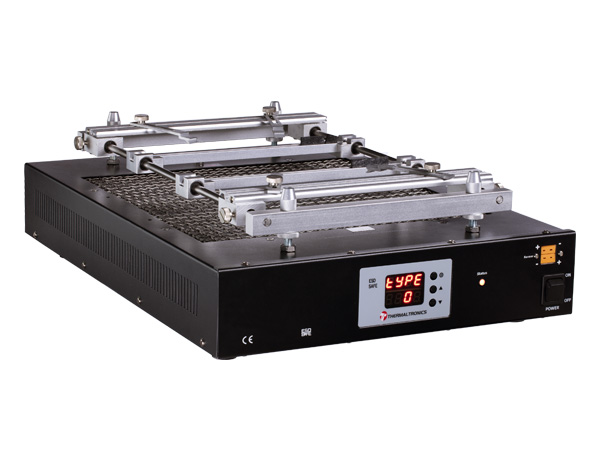

TMT-PH600 IR Preheater
ESD Safe  RoHS Compliant

The TMT-PH600 uses advanced, intelligent, control technology to accurately regulate the temperature of the infrared board preheater. Three heating modes allow the system to manage both leaded and lead free applications.

Microprocessor accurately regulates temperature
Two external temperature sensor probes
Professional board holder allows 3D adjustments
Three heating modes to meet different requirements

TMT-PH600 SPECIFICATIONS

Input Line Voltage: TMT-PH600-1 100-110 VAC, 2000W
  TMT-PH600-2 220-240 VAC, 1500W
Temperature Range: 50°C - 400°C
Heating Area (W x L): 310mm x 310mm
Heating Method: Infrared
Fuse: 250V 10A
Size (W x H x D): 520mm x 380mm x 100mm
Weight: 9 KG

CERTIFICATION MARKS

Thermaltronics TMT-PH600 CE Certified    Thermaltronics TMT-PH600-1 ETL Certified

PACKING LIST

TMT-PH600 IR Preheater
PH-KTC-1 Thermocouples - K Type (2 Pack)
