TMT-PH300 Infrared Preheater

1 Year Warranty - $699.00

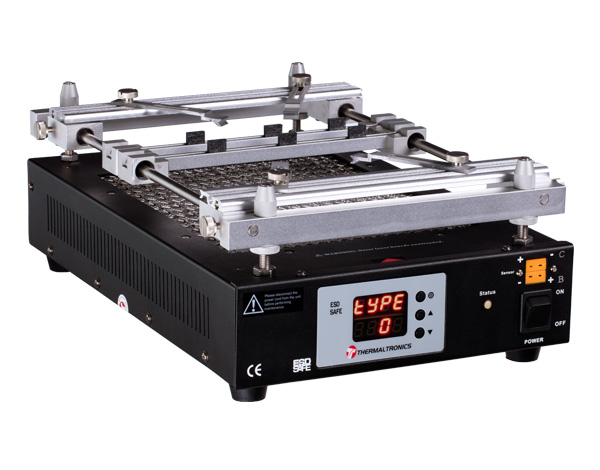

TMT-PH300 IR Preheater
ESD Safe  RoHS Compliant

The TMT-PH300 uses advanced intelligent temperature control technology to control the infrared preheater. Three heating modes allow the unit to handle leaded & lead-free preheating processes and are suitable for use with PCB containing BGA and SMD components.

Microprocessor accurately regulates temperature.
Three heating modes to meet different soldering requirements.
Professional board holder allows three dimensional adjustments.
Large quartz heating element suitable for large sized PCBA.
Two external temperature sensors probes.

TMT-PH300 SPECIFICATIONS

Input Line Voltage: TMT-PH300-1 100-110 VAC, 1000W
  TMT-PH300 220-240 VAC, 850W
Temperature Range: 50°C - 400°C
Heating Area (W x L): 200mm x 250mm
Max Allowable PCB Size (L): 270mm
Heating Method: Infrared
Fuse: 250V 8A
Size (W x H x D): 260mm x 90mm x 410mm
Weight: 3.8 KG

CERTIFICATION MARKS

Thermaltronics TMT-PH300 CE Certified    Thermaltronics TMT-PH300-1 ETL Certified

PACKING LIST

TMT-PH300 IR Preheater
PH-KTC-1 Thermocouples - K Type (2 Pack)
