TMT-2000S Soldering Station

1 Year Warranty - $241.50

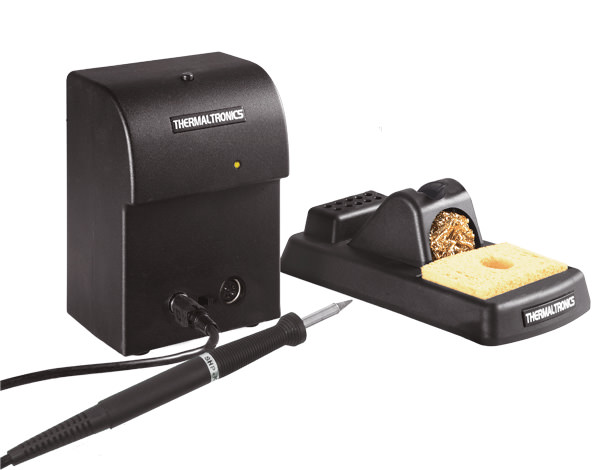

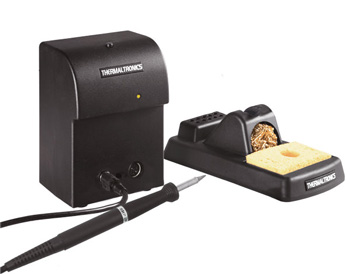

TMT-2000S Soldering Station
ESD Safe  RoHS Compliant

The TMT-2000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.

Curie Heat Technology operating at 470KHz.
Maximum flexibility, allows the use of K, P and S Series tips.
Extremely compact, weighs just 1.3KG.
No calibration or operator training required.
No additional coil assembly costs.

TMT-2000S SPECIFICATIONS

Input Line Voltage: 100-240 VAC, 55W
Tip to Ground Potential: 2mV, true RMS 50-500Hz
Tip to Ground Resistance: <2 Ohms DC
Idle Temperature Stability: +/- 1.1°C (2°F)
Maximum Enclosure Temperature: 50°C (122°F)
Fuse: 250V 1A
Output Power (Maximum): 50 Watts RF
Output Frequency: 470 Khz
Size (W x H x D): 110mm x 155mm x 92mm
Weight: 1.3 KG
Input Line Frequency: 50/60 Hz

CERTIFICATION MARKS:

Thermaltronics TMT-2000S Soldering Station TUV CE Certified  Thermaltronics TMT-2000S Soldering Station TUV NRTL Certified  Thermaltronics TMT-2000S Soldering Station TUV GS Certified

PACKING LIST

TMT-2000PS Power Supply
SHH-4 Soldering Handpiece Holder
SHP-K1 Soldering Handpiece for
K Series Tips
RMP-1 Tip Removal Pad
CC-1 Connection Cable
BC-1 Brass Curls
SPG-1 Sulphide Free Sponge
1The handpiece will vary based on system configuration.

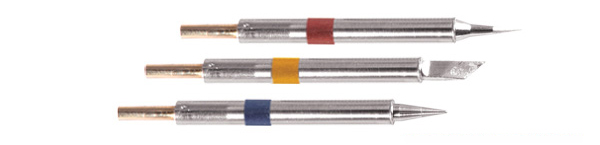

K SERIES - TIP CARTRIDGES (For use with TMT-2000S-K, TMT-2000S-KM)

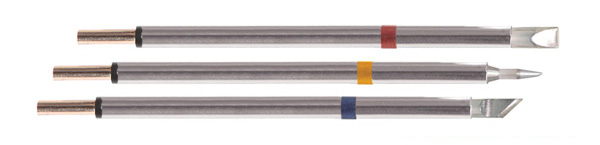

P SERIES - TIP CARTRIDGES (For use with TMT-2000S-P, TMT-2000S-PM)

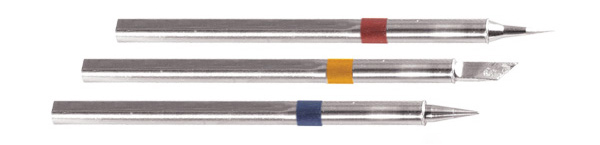

S SERIES - TIP CARTRIDGES (For use with TMT-2000S-SM)
