TMT-PH200 Infrared Preheater

1 Year Warranty - $275.00

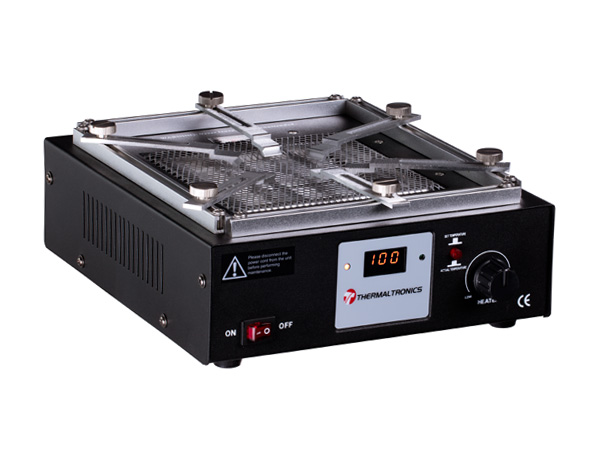

TMT-PH200 IR Preheater
ESD Safe  RoHS Compliant

The TMT-PH200 uses sensor control feedback loop to control the infrared preheater temperature and is suitable for leaded and lead-free preheating processes.

Sensor control feedback loop to control temperature.
Adjustable, easy to use temperature control knob.
Digital display shows temperature.
Utilizes a quartz infrared heater.

TMT-PH200 SPECIFICATIONS

Input Line Voltage: 220-240 VAC
Power: 600 Watts
Temperature Range: 100°C - 380°C
Heating Area (W x L): 130mm x 130mm
Max Allowable PCB Size (L): 140mm x 185mm
Heating Method: Infrared
Fuse: 250V 5A
Size (W x H x D): 220mm x 73mm x 250mm
Weight: 2.1 KG

CERTIFICATION MARKS

Thermaltronics TMT-PH200 CE Certified

PACKING LIST

TMT-PH200 IR Preheater
