1 Year Warranty - $770.00

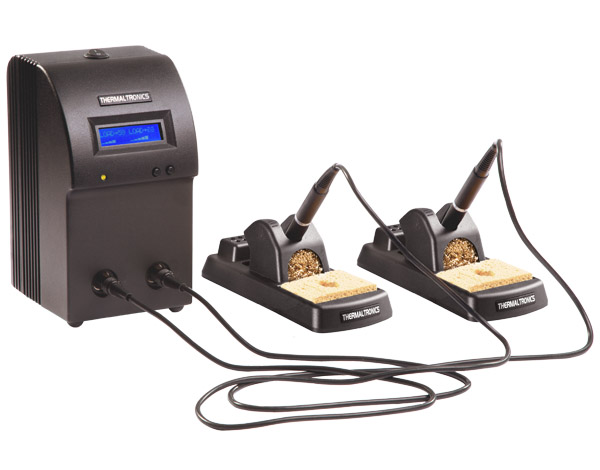

The TMT-2200S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
Dual ports with simultaneous heat up.
High thermal recovery & performance.
470KHz power supply with built-in LCD display.
No calibration or operator training required.
No additional coil assembly costs.
SYSTEM CONFIGURATIONS
TMT-2200S SPECIFICATIONS
| Input Line Voltage: | 100-240 VAC |
| Tip to Ground Potential: | 2mV, true RMS 50-500Hz |
| Tip to Ground Resistance: | <2 Ohms DC |
| Idle Temperature Stability: | +/- 1.1°C (2°F) |
| Maximum Enclosure Temperature: | 50°C (122°F) |
| Fuse: | 250V 2A |
| Output Power (Maximum): | 110 Watts RF |
| Output Frequency: | 470 Khz |
| Size (W x H x D): | 126mm x 230mm x 148mm (5" x 9" x 5.8") |
| Weight: | 2.6 KG (5.7 LBS) |
| Input Line Frequency: | 50-60 Hz |
CERTIFICATION MARKS:
|
PACKING LIST1
| TMT-2200PS | Power Supply |
| 2X SHH-5 | Soldering Handpiece Holder |
| 2X SHP-KM |
Soldering Handpiece for K Series Tips |
| 2X RMP-1 | Tip Removal Pad |
| 2X BC-1 | Brass Curls |
| 2X SPG-1 | Sulphide Free Sponge |
| 1The packing list will vary based on system configuration. | |

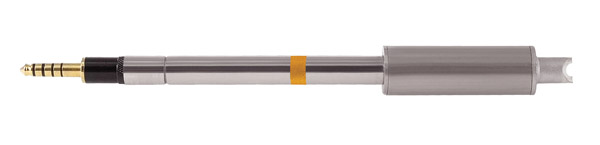

K SERIES - TIP CARTRIDGES (For use with TMT-2200S-2KM)
P SERIES - TIP CARTRIDGES (For use with TMT-2200S-2PM)
S SERIES - TIP CARTRIDGES (For use with TMT-2000S-2SM)
