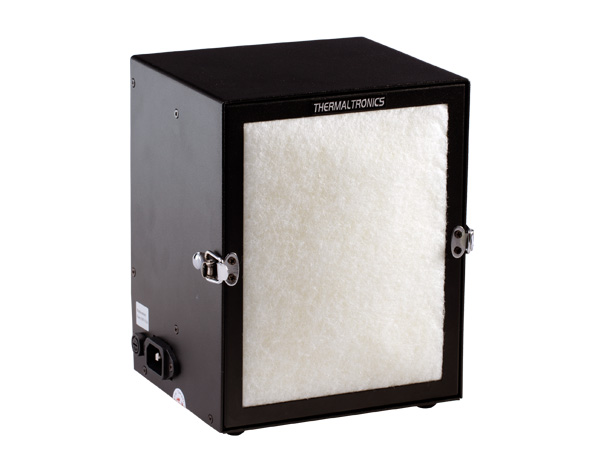

TMT-FE100S Fume Extractor



TMT-FE100S Fume Extractor
ESD Safe  RoHS Compliant

The Thermaltronics TMT-FE100S fume extraction unit, takes up minimal benchtop space but is inclusive of a prefilter and a separate HEPA filter, to ensure operator safety. Fan speed can also be adjusted, based on the proximity of the soldering operation or the amount of fumes being generated.

HEPA filtration ensuring operator safety
Light & compact, takes up minimal benchtop space
Adjustable, easy to use fan speed control

TMT-FE100S SPECIFICATIONS

Input Line Voltage: TMT-FE100PS-1 100-110 VAC
  TMT-FE100PS-2 220-240 VAC
HEPA Efficiency FE-MF100 90% at 0.3 micron
  FE-MF199 99% at 0.3 micron (optional)
Fan Capacity: 5.0 m³ / min
Air Flow: 50 CFM
Noise Level: <55 dBA
Fuse: TMT-FE100PS-1 250V 1A
  TMT-FE100PS-2 250V 0.5A
Size (W x H x D): 166mm x 205mm x 142mm
Weight: 2.0 KG

CERTIFICATION MARKS

Thermaltronics TMT-FE100S CE Certified  Thermaltronics TMT-FE100S Soldering Station TUV NRTL Certified

PACKING LIST

TMT-FE100PS Fume Extractor
FE-PF100 Pre-filter (1 PC)
FE-MF100 Main filter (1 PC)
