Home > Products > TMT-5000S Soldering Station

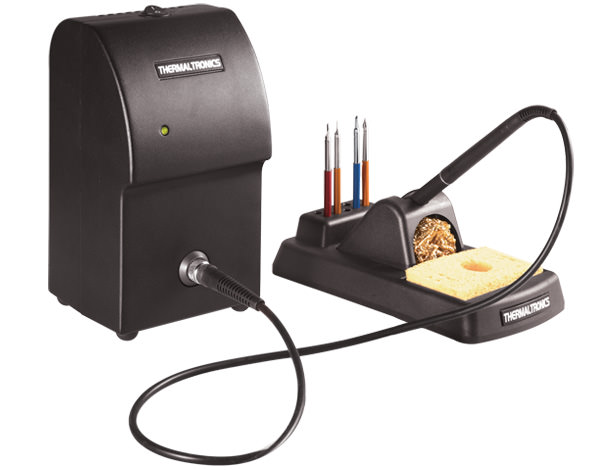

TMT-5000S Soldering System
TMT-5000S Soldering & Rework Station
ESD Safe    RoHS Compliant
The TMT-5000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
  Curie Heat Technology operating at 13.56MHz.
  Features our unique T Series line of tip cartridges.
  Lightweight and compact, takes up minimal table space.
  No calibration or operator training required.
  No additional coil assembly costs.
TMT-5000S SPECIFICATIONS
Input Line Voltage: TMT-5000PS-1 100-110 VAC, 52W
TMT-5000PS-2 220-240 VAC, 52W
Tip to Ground Potential: <2mV, true RMS 50-500Hz
Tip to Ground Resistance: <2 Ohms DC
Idle Temperature Stability: +/- 1.1°C (2°F)
Ambient Operating Temperature: 10-40 °C (50°F -104°F)
Maximum Enclosure Temperature: 50°C (122°F)
Fuse: TMT-5000PS-1 125V 1A
TMT-5000PS-2 250V 0.5A
Output Power (Maximum): 30 Watts
Output Frequency: 13.56 MHz
Size (W x H x D): 112mm x 205mm x 117mm
Weight: 2.58 KG
Input Line Frequency: 50/60 Hz
CERTIFICATION MARKS
TMT-9000S TUV CE Certified  TMT-9000S TUV NRTL Certified  TMT-9000S TUV GS Certified
PACKING LIST
TMT-5000PS Power Supply
SHH-2 Soldering Handpiece Holder
SHP-T Soldering Handpiece
RMP-1 Tip Removal Pad
SG-1-BK Handpiece Grip Black
SG-1-GY Handpiece Grip Gray
CC-1 Connection Cable
BC-1 Brass Curls
SPG-1 Sulphide Free Sponge

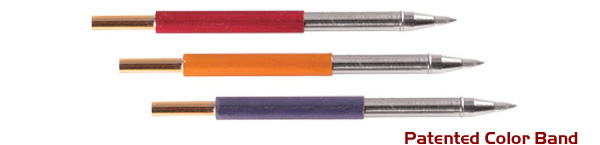

T SERIES - TIP CARTRIDGES
T Series (For use w/TMT-5000S)
