TMT-HA300 Hot Air Rework Tool

1 Year Warranty - $241.50

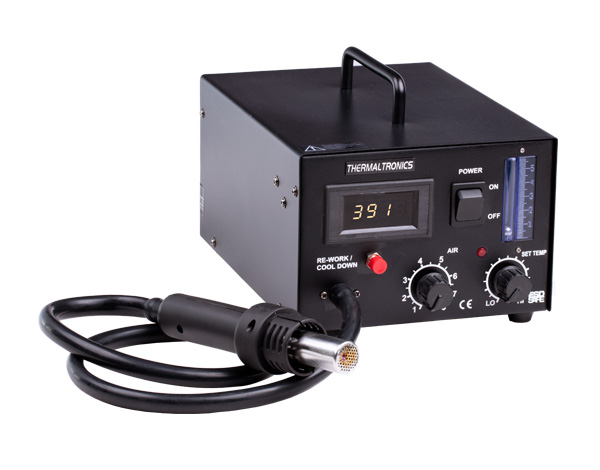

TMT-HA300 Hot Air Rework Tool
ESD Safe  RoHS Compliant

The TMT-HA300 hot air tool uses a large diaphragm pump and can be used for surface mount component removal and reflow on components such as SOIC, CHIP, QFP, PLCC and others.

Digital display shows temperature and status.
Airflow meter provides visual feedback of air flow.
Large selection of high quality nozzles.
Adjustable, easy to use temperature and air control knobs.

TMT-HA300 SPECIFICATIONS

Input Line Voltage: TMT-HA300-1 100-110 VAC
  TMT-HA300 220-240 VAC
Power: 500 Watts
Temperature Range: 100°C - 480°C
Pump: Diaphragm
Airflow (Max) 23L / min
Fuse: TMT-HA300-1 250V 5A
  TMT-HA300 250V 3A
Size (W x H x D): 188mm x 127mm x 246mm
Weight: 4.0 KG

CERTIFICATION MARKS

Thermaltronics TMT-HA300 CE Certified  Thermaltronics TMT-HA300-1 ETL Certified

PACKING LIST

TMT-HA300 Hot Air Tool
HTN-D30 Nozzle 3.0mm (0.12")
HTN-D50 Nozzle 5.0mm (0.20")
HTN-D80 Nozzle 8.0mm (0.31")
HTN-D10 Nozzle 10.0mm (0.39")
HA-HE300 Heating Element
