Products

TMT-HA100 Hot Air Rework Tool

1 Year Warranty - $395.00

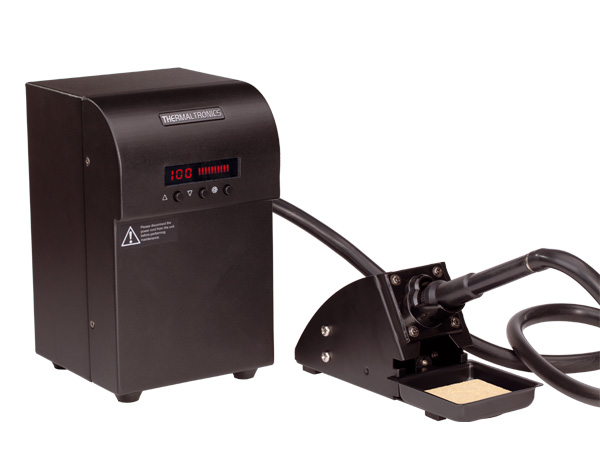

TMT-HA100 Hot Air Pencil
ESD Safe  RoHS Compliant

The TMT-HA100 hot air pencil is designed to remove and reflow small precision components, integrated circuits and other smaller devices.

ESD safe design with integrated ground
Specialized for work on precision components.
Uses HAP Series Hot Air Pencil Nozzles
High quality heating element ensures fast heat up and long heater life

TMT-HA100 SPECIFICATIONS

Input Line Voltage: TMT-HA100-1 100-110 VAC
  TMT-HA100 220-240 VAC
Temperature Range: 100 °C - 450 °C
Pump: Diaphragm
Airflow (Max) 10L / min
Fuse: TMT-HA100-1 250V 3A
  TMT-HA100 250V 1.5A
Size (W x H x D): 130mm x 215mm x 130mm
Weight: 3.1 KG

CERTIFICATION MARKS

Thermaltronics TMT-HA100 CE Certified

PACKING LIST

TMT-HA100 Hot Air Pencil
HAP-D15 Nozzle 1.5mm (0.06")
HAP-D20 Nozzle 2.0mm (0.08")
HAP-D25 Nozzle 2.5mm (0.10")
HAP-D30 Nozzle 3.0mm (0.12")
HAP-D35 Nozzle 3.5mm (0.14")
HAP-D40 Nozzle 4.0mm (0.16")
