TMT-HA050 Hot Air Rework Tool

1 Year Warranty - $195.00

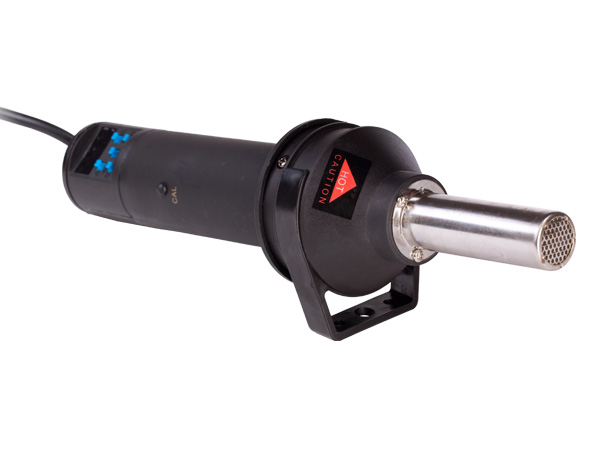

TMT-HA050 Hot Air Rework Tool
ESD Safe  RoHS Compliant

The TMT-HA050 hot air tool can be used for the removal of surface mount components such as SOIC, QFP, PLCC and other similar devices.

Digital display shows temperature and air flow
Light, portable, plug and use tool
Uses HTN Series Hot Air Nozzles
Convection heating allows low pressure hot air to focus on solder joints

TMT-HA050 SPECIFICATIONS

Input Line Voltage: 220-240 VAC
Power: 600 Watts
Temperature Range: 100 °C - 480 °C
Pump: Turbine Motor
Airflow (Max) 30L / min
Fuse: 250V 3A
Size (W x D): 65mm x 265mm
Weight: 1 KG

CERTIFICATION MARKS

Thermaltronics TMT-HA050 CE Certified

PACKING LIST

TMT-HA050 Hot Air Tool
HTN-D30 Nozzle 3.0mm (0.12")
HTN-D50 Nozzle 5.0mm (0.20")
HTN-D80 Nozzle 8.0mm (0.31")
HTN-D10 Nozzle 10.0mm (0.39")
HA-HE050-2 Heating Element
